Jetpack Compose 공부 ~ 5주차

Jetpack Compose 공부 ~ 5주차

Nov 25, 2020. | By: pluulove

본 글은 개인적으로 Jetpack AndroidX Compose의 스터디한 내용을 정리하는 아카이브용입니다.

지극히 개인적인 의견입니다.


테스트 전제 조건

  • Android Studio 4.2 Canary 16
  • Jetpack Compose 1.0.0-alpha07

실험하는 소스 : https://github.com/Pluu/WebToon/compare/develop-compose


1. Compose 1.0.0-alpha07에서 Kotlin 1.4.20 사용시 빌드 에러가 발생함

IncompatibleClassChangeError: Found class org.jetbrains.kotlin.ir.declarations.IrClass, but interface was expected

JVM / IR: “IncompatibleClassChangeError: Found class org.jetbrains.kotlin.ir.declarations.IrClass, but interface was expected” with Compose

https://youtrack.jetbrains.com/issue/KT-43350

해결법 : Kotlin plugin 1.4.10 사용

Merged

  • 1506451: Support for Kotlin 1.4.20 | https://android-review.googlesource.com/c/platform/frameworks/support/+/1506451

2. Drawable에 있는 이미지 로드시 실패하는 케이스

<!-- drawable/check_circle.xml -->
<?xml version="1.0" encoding="utf-8"?>
<layer-list xmlns:android="http://schemas.android.com/apk/res/android">
    <item>
        <shape android:shape="oval">
            <solid android:color="#CC222222" />
        </shape>
    </item>
  	<!-- vector Image -->
    <item android:drawable="@drawable/ic_check_white_24" />
</layer-list>

테스트 1) imageResource 사용

Image(asset = imageResource(id = R.drawable.check_circle))
java.lang.NullPointerException: BitmapFactory.decodeResource(res, resId) must not be null
    at androidx.compose.ui.graphics.AndroidImageAssetKt.imageFromResource(AndroidImageAsset.kt:37)
    at androidx.compose.ui.res.ImageResourcesKt.imageResource(ImageResources.kt:44)
    at com.pluu.webtoon.episode.ui.EpisodeItemUiKt$EpisodeItemUiOverlayUi$1.invoke(EpisodeItemUi.kt:105)

테스트 2) vectorResource 사용

Image(asset = vectorResource(id = R.drawable.check_circle))
java.lang.RuntimeException: java.lang.reflect.InvocationTargetException
    at com.android.internal.os.RuntimeInit$MethodAndArgsCaller.run(RuntimeInit.java:602)
    at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:947)
    Caused by: java.lang.reflect.InvocationTargetException
    at java.lang.reflect.Method.invoke(Native Method)
    at com.android.internal.os.RuntimeInit$MethodAndArgsCaller.run(RuntimeInit.java:592)
    at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:947)
Caused by: org.xmlpull.v1.XmlPullParserException: Binary XML file line #2<VectorGraphic> tag requires viewportWidth > 0
    at androidx.compose.ui.graphics.vector.compat.XmlVectorParserKt.createVectorImageBuilder(XmlVectorParser.kt:168)
    at androidx.compose.ui.res.VectorResourcesKt.loadVectorResource(VectorResources.kt:97)
    at androidx.compose.ui.res.VectorResourcesKt.vectorResource(VectorResources.kt:49)
    at com.pluu.webtoon.episode.ui.EpisodeItemUiKt$EpisodeItemUiOverlayUi$1.invoke(EpisodeItemUi.kt:105)
    at com.pluu.webtoon.episode.ui.EpisodeItemUiKt$EpisodeItemUiOverlayUi$1.invoke(Unknown Source:13)

쉬운 해결 방법 : Modifier.drawBehind 사용

Image(
    asset = vectorResource(id = R.drawable.ic_check_white_24),
    modifier = modifier.drawBehind {
        drawCircle(color = /** ... **/ )
    }
)
// Draw into a Canvas behind the modified content.
fun Modifier.drawBehind(onDraw: DrawScope.() -> Unit): Modifier

Modifier 기능을 통해서 Content의 뒷부분에 원하는 형태를 Canvas로 그릴 수 있다.

3. Lazy + MoreLoad + Append Item 고민

ViewModel로부터 Item이 추가되는 형태에서 무한 스크롤 처리 대응하는 것이 나을지 고민.

전체 리스트 관리를 ContentUi 를 호출하는 곳에서 하는 것이 편할지 고민. 데이터 관리가 한쪽으로 집중되는 형태가 되므로 remember 처리를 적절한 곳에서 하는 것이 관리하기 편할 것으로 생각됨.

@Composable
fun ContentUi(
  list: List<Item>
) {
  val rememberItems = remember { mutableStateListOf<Item>() }

  onCommit(list) {
    rememberItems.addAll(list)
  }

  LazyColumn(items = item, ...) {
    ...
  }
}

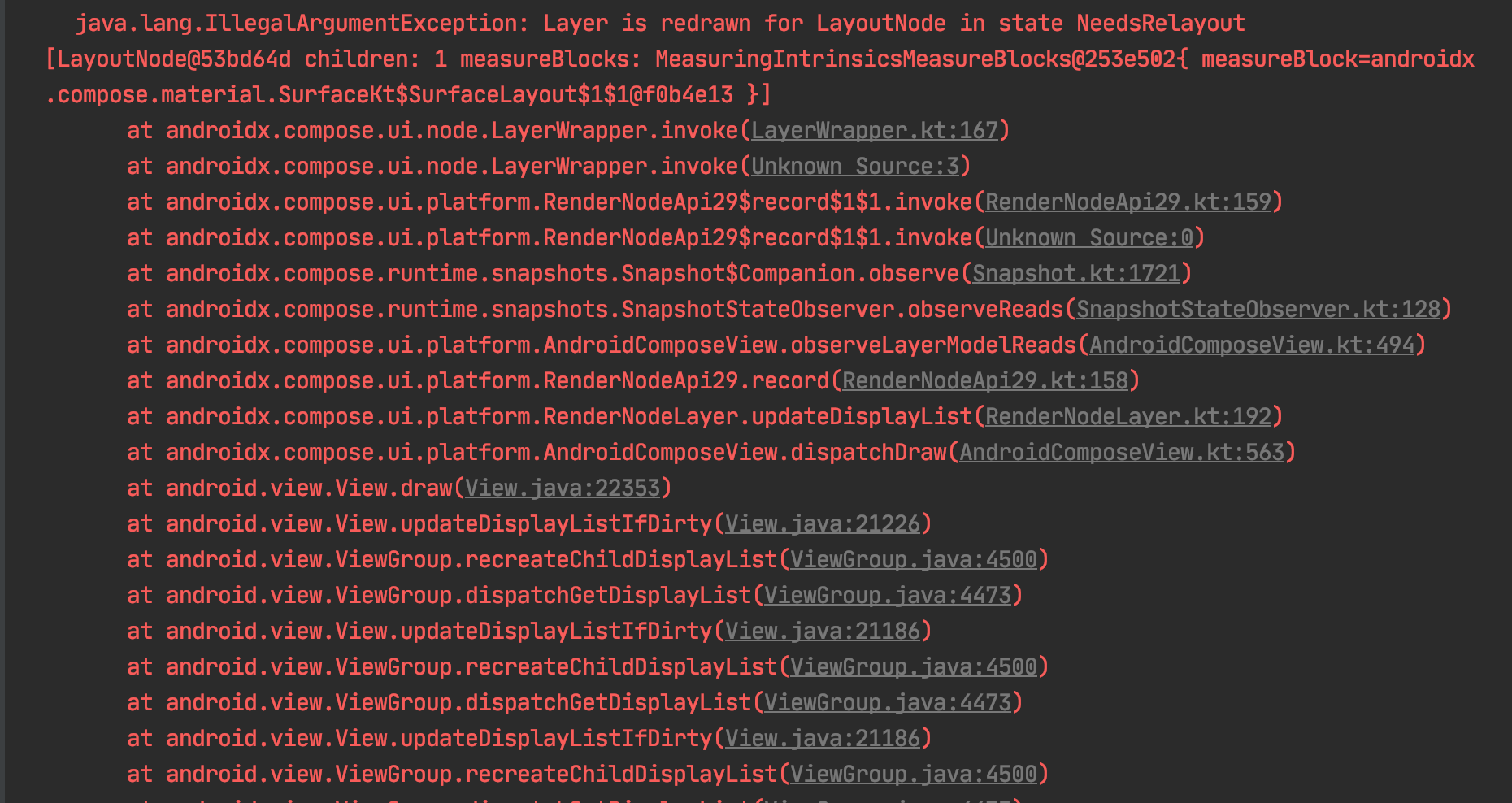

Issues : [Jetsnack] Layer is redrawn for LayoutNode in state NeedsRelayout | https://github.com/android/compose-samples/issues/236#issue-724049464

왠지 모를 수정 PR

1500671: Fix LayoutNode not marking children as not placed | https://android-review.googlesource.com/c/platform/frameworks/support/+/1500671

4. Indicator 복수 컬러 처리 CircularProgressIndicator

기존 API : https://cs.android.com/androidx/platform/frameworks/support/+/androidx-master-dev:compose/material/material/src/commonMain/kotlin/androidx/compose/material/ProgressIndicator.kt

불편함 점

  • 현재 API에는 Indicator에 복수 컬러를 지원이 안함
  • Circular가 한 바퀴 돌았다라는 시점 처리가 어려움

해결 방법

  1. 코드를 복사
  2. currentRotationAngleOffset 가 변경되었을 때 기존 API에 전달할 Color 값 변경하도록 대응

결과 화면

5. Compose + ViewModel 조합에서 Event (SingleLiveData) 처리는 귀찮을 수도 있다

@Composable
fun xxxx(vm : ViewModel) {
   val livedata_test by viewModel.liveDataTest.observeAsState(...)
   val flow_test by viewModel.flowTest.collectAsState(...)
}
  • 화면 이동, 다이얼로그 등의 Event 케이스는 흔한 패턴
  • observeAsState / collectAsState 내부에는 값을 항상 가지는 별도 remember가 존재하므로 1번만 소비하는 Event같은 패턴은 사용하기 어려울 수 있다.

내부 코드

@Suppress("NOTHING_TO_INLINE")
@Composable
inline fun <T : R, R> Flow<T>.collectAsState(
    initial: R,
    context: CoroutineContext = EmptyCoroutineContext
): State<R> = produceState(initial, this, context) {
    if (context == EmptyCoroutineContext) {
        collect { value = it }
    } else withContext(context) {
        collect { value = it }
    }
}

@Composable
fun <T> produceState(
    initialValue: T,
    subject1: Any?,
    subject2: Any?,
    @BuilderInference producer: suspend ProduceStateScope<T>.() -> Unit
): State<T> {
    val result = remember { mutableStateOf(initialValue) }
    LaunchedEffect(subject1, subject2) {
        ProduceStateScopeImpl(result, coroutineContext).producer()
    }
    return result
}

https://github.com/androidx/androidx/blob/androidx-master-dev/compose/runtime/runtime/src/commonMain/kotlin/androidx/compose/runtime/FlowAdapter.kt

https://github.com/androidx/androidx/blob/androidx-master-dev/compose/runtime/runtime/src/commonMain/kotlin/androidx/compose/runtime/ProduceState.kt

@Composable
fun <R, T : R> LiveData<T>.observeAsState(initial: R): State<R> {
    val lifecycleOwner = LifecycleOwnerAmbient.current
    val state = remember { mutableStateOf(initial) }
    onCommit(this, lifecycleOwner) {
        val observer = Observer<T> { state.value = it }
        observe(lifecycleOwner, observer)
        onDispose { removeObserver(observer) }
    }
    return state
}

https://github.com/androidx/androidx/blob/androidx-master-dev/compose/runtime/runtime-livedata/src/main/java/androidx/compose/runtime/livedata/LiveDataAdapter.kt


Etc. Compose Sample ~ Spotify

https://github.com/Gurupreet/ComposeCookBook

Etc. Compose Sample ~ Spotify Desktop

Home Search & Detail

https://github.com/Gurupreet/ComposeSpotifyDesktop

Etc.

  • Migrating Your Design System to Jetpack Compose : https://speakerdeck.com/ditn/migrating-your-design-system-to-jetpack-compose
