[번역] DroidKaigi 2016 ~ Chrome과 Android의 과거 ・ 현재 ・ 미래

[번역] DroidKaigi 2016 ~ Chrome과 Android의 과거 ・ 현재 ・ 미래

Sep 3, 2016. | By: pluulove

본 포스팅은 ChromeとAndroidの過去・現在・未来 을 기본으로 번역하여 작성했습니다

제 일본어 실력으로 인하여 오역이나 오타가 발생할 수 있습니다.

실제 슬라이드의 일본어 부분을 번역했다는 점 양해바랍니다.


1p

Chrome과 Android의 과거・현재・미래

2p

This is the last session of DroidKaigi

3p

Thank you for coming to my session

4p

마지막까지 즐기세요!

5p

About Me

Shinobu Okano

@perandoOS

Mercari, Inc

6p

Mercari는 간단하게 사고팔수 있어 안심 ・ 안전한 거래가 가능한 무료 앱입니다.

7p

shinobu.apk

shinobu.apk #1의 공개토론 녹음 파일과 Show Notets를 공개했습니다!

http://hack-it-iron.hatenablog.com/entry/2016/02/08/142322

8p

여유로운 Android Framework Code Reading

여유로운 Android Framework Code Reading #2을 개최했습니다

http://hack-it-iron.hatenablog.com/entry/2015/11/28/185529

9p ~ 11p

WebView

고통스럽다

12p

WebView History

1.x ~ 4.3.x 4.4.x 5.0 ~
WebKit Chromium System WebView (APK)

13p

Google I/O 2012 Android WebView

https://www.youtube.com/watch?v=HbOtn5VhGZU

14p

Migrating to WebView in Android 4.4

https://developer.android.com/guide/webapps/migrating.html

15p

Android System WebView

https://play.google.com/store/apps/details?id=com.google.android.webview

16p

Android WebView의 진화와 구현

http://outcesticide.hatenablog.com/entry/android_webview

17p

Chrome Custom tabs

18p

Show the Chrome Tab like a my app browser

19p

Intent / Chrome Custom Tabs

20p ~ 21p

Chrome Custom Tabs

App Process –(Intent)–> Chrome Process

22p ~ 27p

Setup Chrome Custom Tabs

Custom Tabs Support Library

https://developer.android.com/tools/support-library/features.html#custom-tabs

Shared util module (Optional)

https://github.com/GoogleChrome/custom-tabs-client/tree/master/shared

Chrome Custom tabs Starter Kit

https://github.com/operando/chrome-custom-tabs-starterkit

dependencies {
  compile 'com.android.support:customtabs:23.1.1'
  compile project(':shared')
}
Uri URI = Uri.parse("https://android.com/");
CustomTabsIntent tabsIntent = new CustomTabsIntent.Builder().build();
String packageName = CustomTabsHelper.getPackageNameToUse(this);
tabsIntent.intent.setPackage(packageName);
tabsIntent.launchUrl(this, getUri());

28p

app to customize how Chrome looks and feels

29p ~ 30p

UI customization

  • Toolbar color
  • Toolbar close button
  • Enter and exit animations
  • Add actions to the toolbar
  • Add overflow menu
CustomTabsIntent tabsIntent = new CustomTabsIntent.Builder()
    .setShowTitle(true)
    .setToolbarColor(0x77C159)
    .setStartAnimations(this, R.anim.slide_in_right, R.anim.slide_out_left)
    .setExitAnimations(this, R.anim.slide_in_left, R.anim.slide_out_right)
    .setCloseButtonIcon(back)
    .setActionButton(droid, "android", getActionButtonIntent())
    .addMenuItem("android menu", getActionButtonIntent()) .build();
String package = CustomTabsHelper.getPackageNameToUse(this);
tabsIntent.intent.setPackage(package);
tabsIntent.launchUrl(this, Uri.parse("https://android.com/"));

31p

UI Customize

32p

No Customize vs UI Customize

33p

making the transition from app to web content fast and seamless

34p ~ 36p

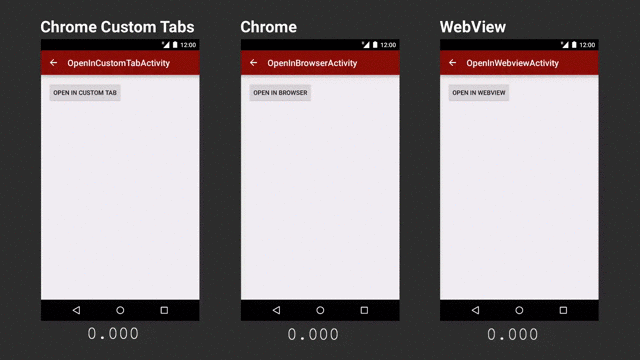

optimized to load faster than WebViews and traditional methods of launching Chrome

http://3.bp.blogspot.com/-bsqTJQg_KG8/VecqcRS1SnI/AAAAAAAACAM/nclxZZ1bOxA/s1600/CCT_Large+2.gif

37p

Wram up / Pre-fetch

38p

Use Chrome features

  • Ssecurity
  • Saved passwords
  • Data Saver
  • Shared cookie
  • more features…

39p ~ 41p

Chrome Custom Tabs can replace the WebView?

NO!!!!!!!!!!

42p ~ 45p

Why?

세밀한 Handling이 안된다

+비전의 WebChromeClient

+비전의 WebViewClient

+JavaScriptInterface

CustomTabsCallback#onNavigationEvent 함수에서 페이지(Tab)을 읽기 시작・종료, 닫기・열었다는 정보라면 알려준다

46p

Best Practices for Custom Tabs

https://medium.com/google-developers/best-practices-for-custom-tabs-5700e55143ee

47p ~ 51p

Android Intents with Chrome

Chrome이Intent Syntac URL을 해석해서 Intent를 실행한다

<intent-filter>
    <action android:name="android.intent.action.VIEW" />
    <category android:name="android.intent.category.DEFAULT" />
    <category android:name="android.intent.category.BROWSABLE" />
    <data android:scheme="mercariapp" android:host="run:" />
</intent-filter>
<a href= “intent://run/#Intent; scheme=mercariapp;package=com.mercariapp.mercari; end”>Run Mercari</a>

https://developer.chrome.com/multidevice/android/intents

52p ~ 55p

Debugging WebViews

webView.setWebContentsDebuggingEnabled(true);

Android 4.4 이상

https://developers.google.com/web/tools/chrome-devtools/debug/remote-debugging/webviews

56p ~ 57p

Web App Manifest

Define the metadata associated with your web application in a JSON-based manifest.

58p

Manifest and its members

  • name
  • icons
  • display
  • theme_color
  • background_color
  • etc.

59p ~ 60p

Manifest by Google IO 2015

{
    "name": "Google I/O 2015",
    "short_name": "I/O 2015",
    "display": "standalone",
    "icons": [{
        "src": "images/touch/homescreen144.png",
        "sizes": "144x144",
        "type": "image/png"
        },…..],
    "gcm_sender_id": "608394197750",
    "gcm_user_visible_only": true
 }

https://events.google.com/io2015/manifest.json

<link rel="manifest" href="manifest.json">

view-source: https://events.google.com/io2015/

61p ~ 62p

App Install Banner

  • manifest
  • HTTPS
  • Service Worker
  • visited your site twice over two separate days during the course of two weeks

63p

Service Worker

  • Web Push Notification(GCM)
  • Cache API
  • Background Sync API
  • etc.

64p

스마트폰 체험을 한걸음 앞으로 프로그레시브 웹 앱 작성법

Google Eiji Kitamura

https://docs.google.com/presentation/d/1VcXsKDaCUpf2SS35WNcrKslkK6PcXxWsnhcKiLfWCXs/edit#slide=id.gf39949af9_0_0

65p

??

66p

Web App Manifest = Web Technology

67p

but

68p ~ 69p

Native app install banner

similar to Web app install banners, but instead of adding to the home screen will let the user install your native app without leaving your site

70p

Criteria to Show the Banner

  • You have a web app manifest file Site is served over HTTPS
  • The user has visited your site twice over two separate days during the course of two weeks

71p

Testingflag

chrome://flags/#bypass-app-banner-engagement-checks

72p

Native app install banner - manifest.json

{
    "name": "Native app install banner Sample",
    "short_name": "Native app install banner Sample",
    "icons": [{
        "src": "image/ic_android_black_48dp.png",
        "sizes": "144x144",
        "type": "image/png"
    }],
    "prefer_related_applications": true,
    "related_applications": [{
        "platform": "play",
        "id": "com.kouzoh.mercari"
    }]
}

73p

Web App Manifest

Web App Manifest

  • 草案(Working Draft)

74p

Native app Install Banners

https://developers.google.com/web/fundamentals/engage-and-retain/app-install-banners/native-app-install

75p ~ 77p

App Stream

  • when Google finds in-app content that points to a mobile app you don’t already have installed, it will offer you the option to “stream” the app instead.
  • To run the application in the streaming when application don’t have installed.

78p ~ 82p

Streaming apps?

Very Cool!!!!!!!!!!

http://3.bp.blogspot.com/-2Ats2zhc0HQ/Vkyq3JlcEiI/AAAAAAABBrA/hcfu4p02Fn4/s1600/app-stream-w-dots.gif

“This uses a new cloud-based technology that we’re currently experimenting wit”

http://insidesearch.blogspot.jp/2015/11/new-ways-to-find-and-stream-app-content.html

83p

New ways to find (and stream) app content in Google Search

http://insidesearch.blogspot.jp/2015/11/new-ways-to-find-and-stream-app-content.html

84p ~ 86p

Trial Run Ads

App ad format that lets a user play a game for up to 60 seconds by streaming content from the app before downloading

http://2.bp.blogspot.com/-9v_0t2rKlzM/Vl-wzBxLs8I/AAAAAAAACGo/hU-Nndu-AIg/s1600/Trial%2BRun%2BAd%2Bgif%2Bfor%2BSGN.gif

87p

Introducing new interactive ads to drive app installs

https://adwords.googleblog.com/2015/12/trial-run-ads-interactive-interstitials-beta.html

88p

Chrome Platform Status

https://www.chromestatus.com/features

89p

Chrome와 Android의 향후에 대해서

90p

Thanks!!

Enjoy After Party!!
